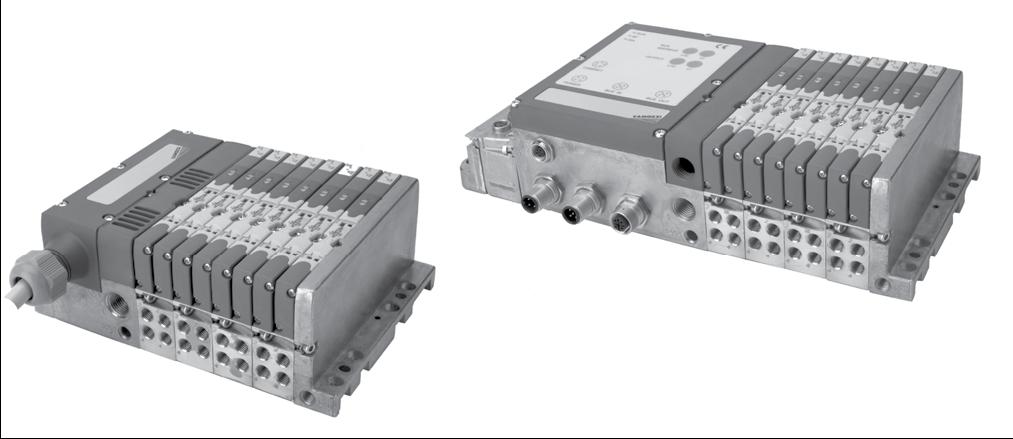

H
|
Series
|
P
|
Type:
P = Pneumatic
A = Accessories
|
5
|
Size:
1 = 10,5
2 = 21
5 = Mixed (both 10,5 and 21)
|
M
|
Electrical connector:
M = Multipole 25 pin PNP
N = Multipole 25 pin NPN
H = Multipole 37 pin PNP
L = Multipole 37 pin NPN
|
03
|
Cable length of the multipole
03 = 3 mt
05 = 5 mt
10 = 10 mt
15 = 15 mt
20 = 20 mt
25 = 25 mt
30 = 30 mt
x = length to be defined in meters
|
ABCS
|
Type of sub-bases and seals:
Sub-base for two valves Size 1 (10,5mm):
A = threaded M7 (ports 2 and 4)
B = fittings for tube Ø4 (ports 2 and 4)
C = fittings for tube Ø6 (ports 2 and 4)
D = channel 1; 3 ; 5 closed - threaded M7
E = channel 1; 3 ; 5 closed - cartridge Ø4 (ports 2 and 4)
F = channel 1; 3 ; 5 closed - cartridge Ø6 (ports 2 and 4)
G = channel 3 ; 5 closed - threaded M7
H = channel 3 ; 5 closed - cartridge Ø4 (ports 2 and 4)
I = channel 3 ; 5 closed - cartridges Ø6 (ports 2 and 4)
L = channel 1 closed - threaded M7
M = channel 1 closed - cartridge Ø4 (ports 2 and 4)
N = channel 1 closed - cartridge Ø6 (ports 2 and 4)
|
| |
Sub-bases for electrical supply:
K = Module for electrical power
supply separation
+ supplementary inlet pressure
Seals:
T = diaphragm seal - channel 1;3;5
U = diaphragm seal - channel 1
V = diaphragm seal - channel 3; 5
|
MMCCBBB
|
Type of solenoid valve
Size 1 and 2:
M = 5/2 Monostable
B = 5/2 Bistable
V = 5/3 Centres Closed
C = 2 x 3/2 N.C.
A = 2 x 3/2 N.O.
G = 1 x 3/2 N.C. + 1 x 3/2 N.O.
E = 2 x 2/2 N.C.
F = 2 x 2/2 N.O.
I = 1 x 2/2 N.C. + 1 x 2/2 N.O.
L = Free position
|
| |
Solenoid valve + Pressure regulator on inlet 1
(SIZE 2 ONLY):
N = 5/2 Monostable
P = 5/2 Bistable
Q = 5/3 Centres Closed
R = 2 x 3/2 N.C.
S = 2 x 3/2 N.O.
T = 1 x 3/2 N.C. + 1 x 3/2 N.O.
U = 2 x 2/2 N.C.
X = 2 x 2/2 N.O.
Y = 1 x 2/2 N.C. + 1 x 2/2 N.O.
|
A
|
Terminal plates:
Threaded:
A = 1; 12/14 in common
3/5; 82/84 threaded ports
B = 1; 12/14 separate
3/5; 82/84 threaded ports
C = 1; 12/14 in common
3/5; 82/84 with integrated silencer
D = 1; 12/14 separate
3/5; 82/84 with integrated silencer
|
| |
Terminal plates:
With cartridges Ø 10 :
I = 1; 12/14 in common
3/5; 82/84 conveyable
L = 1; 12/14 separate
3/5; 82/84 conveyable
M = 1; 12/14 in common
3/5; 82/84 with integrated silencer
N = 1; 12/14 separate
3/5; 82/84 with integrated silencer
|
H
|
Series
|
P
|
Type:
P = Pneumatic
A = Accessories
|
5
|
Size:
1 = 10,5
2 = 21
5 = Mixed (both 10,5 and 21)
|
P
|
Electrical Connection:
P = Profibus-DP (expandable)
C = CANopen (expandable)
D = DeviceNet (expandable)
E = Expansion (only for P-C-D)
F = Profibus-DP - Individual Fieldbus
G = CANopen - Individual Fieldbus
R = DeviceNet - Individual Fieldbus
|
3A
|
Input Modules:
0 = Without inputs
A = Input module - 8 digital (8xM8)
|
XC
|
Output Modules:
0 = Without outputs
B = Output module - 4 digital (2xM12)
C = 8 Output Sub-D 37 pin
D = 16 Output Sub-D 37 pin
E = 24 Output Sub-D 37 pin
F = 32 Output Sub-D 37 pin
X = Pneum. Electr. Interface
Y = Pneum. Electr. Interface + external power supply
|
ABCS
|
Sub-bases for two solenoid valves (size 1):
A = threaded M7 (ports 2 and 4)
B = fittings for tube Ø4 (ports 2 and 4)
C = fittings for tube Ø6 (ports 2 and 4)
D = channel 1; 3 ; 5 closed - threaded M7
E = channel 1; 3 ; 5 closed - cartridge Ø4 (ports 2 and 4)
F = channel 1; 3 ; 5 closed - cartridge Ø6 (ports 2 and 4)
G = channel 3; 5 closed - threaded M7
H = channel 3; 5 closed - cartridge tube Ø 4
I = channel 3; 5 closed - cartridge tube Ø 6
L = channel 1 closed - threaded M7
M = channel 1 closed - cartridge tube Ø 4
N = channel 1 closed - cartridge tube Ø 6
|
| |
Sub-bases for electrical supply:
K = module for electrical power
supply separation + supplementary inlet pressure
Seals:
T = diaphragm seal - channel 1; 3; 5
U = diaphragm seal - channel 1
V = diaphragm seal - channel 3 and 5
|
MMCCBBB
|
Type of Solenoid valve
Size 1 and Size 2:
M = 5/2 Monostable
B = 5/2 Bistable
V = 5/3 Centres Closed
C = 2 x 3/2 N.C.
A = 2 x 3/2 N.O.
G = 1 x 3/2 N.C. + 1 x 3/2 N.O.
E = 2x 2/2 N.C.
F = 2 x 2/2 N.O.
I = 1 x 2/2 N.C. + 1 x 2/2 N.O.
L = free position
|
| |
Solenoid valve + Pressure regulator
on channel 1 - Size 2 ONLY:
N = 5/2 Monostable
P = 5/2 Bistable
Q = 5/3 Centres Closed
R = 2 x 3/2 N.C.
S = 2 x 3/2 N.O.
T = 1 x 3/2 N.C. + 1 x 3/2 N.O.
U = 2 x 2/2 N.C.
X = 2 x 2/2 N.O.
Y = 1 x 2/2 N.C. + 1 x 2/2 N.O.
|
A
|
Terminal plates:
Threaded:
A = 1; 12/14 in common
3/5; 82/84 threaded ports
B = 1; 12/14 separate
3/5; 82/84 threaded ports
C = 1; 12/14 in common
3/5; 82/84 with integrated silencer
D = 1; 12/14 separate
3/5; 82/84 with integrated silencer
|
| |
Terminal plates:
With cartridges Ø 10 :
I = 1; 12/14 in common
3/5; 82/84 conveyable
L = 1; 12/14 separated
3/5; 82/84 conveyable
M = 1; 12/14 in common
3/5; 82/84 with integrated silencer
N = 1; 12/14 separated
3/5; 82/84 with integrated silencer
|
| |
CODING EXAMPLE OF SINGLE VALVE (Spare part)
|
HP1V-M
|
|
H
|
Series
|
P
|
|
| |
Type:
P = Pneumatic
|
1
|
Size:
1 = 10,5
2 = 21
|
V
|
|
| |
Type of accessory:
V = Solenoid valve
|
-
|
|
M
|
|
| |
Solenoid valve +regulator + sub base
N = 5/2 Monostable
P = 5/2 Bistable
Q = 5/3 Centres Closed
R = 2 x 3/2 N.C.
S = 2 x 3/2 N.O.
T = 1 x 3/2 N.C. + 1 x 3/2 N.O.
U = 2 x 2/2 N.C.
X = 2 x 2/2 N.O.
Y = 1 x 2/2 N.C. + 1 x 2/2 N.O.
|
| |
|
| |
CODING EXAMPLE OF SUB-BASES - Accessories
|
HHA1S-A
|
|
H
|
|
| |
Series
|
A
|
Type:
A = Accessories
|
1
|
|
| |
Size:
0 = For X-Y-K-T-U-V
1 = 10,5
2 = 21
|
S
|
Type of accessory:
R = Sub base Multipole
S = Sub base Fieldbus
G = Seals
|
-
|
|
A
|
Type of sub-base:
A = Through - threaded M7
D = channel 1; 3; 5 closed - threaded M7
G = channel 3; 5 closed - threaded M7
L = channel 1 closed - threaded M7
Q = Threaded G1/8 (ports 2 and 4)
X = supplementary pressure supply and exhaust
Y = supplementary pressure supply and exhaust (with integrated silencer)
K = Module for electrical power supply separation + supplementary inlet pressure
|
| |
Type of seal:
T = diaphragm seal - channel 1;3;5
U = diaphragm seal - channel 1
V = diaphragm seal - channel 3;5
P = Through
|
HA0M-A
|
TERMINALS CODING EXAMPLE - Accessories
|
H
|
|
A
|
Series
|
0
|
Type:
A = Accessories
|
M
|
Size:
0 = Not defined
|
-
|
Electrical connection:
M = Multipole PNP
N = Multipole NPN
P = Profibus-DP (expandable)
C = CANopen (expandable)
D = DeviceNet (expandable)
E = Expansion
F = Terminals for individual Fieldbus
|
A
|
|
| |
End blocks:
A = 1 - 12/14 common 3/5 threaded
B = 1 - 12/14 separated 3/5 threaded
C = 1 - 12/14 common 3/5 with integrated silencer
D = 1 - 12/14 separated 3/5 with integrated silencer
|
| |
|
HA01-D
|
EXAMPLE OF INPUT/OUTPUT MODULE CODING - Accessories
|
H
|
|
A
|
Series
|
0
|
Type:
A = Accessories
|
1
|
Size:
0 = Not defined
|
-
|
Type of accessory:
1 = Input Module
2 = Output Module
|
D
|
|
| |
Type of module
D = Digital
|
| |
|
G4X1-H-3
|
Multipole Connector - Accessory
|
| |
G4X1-H-3 = Multipole Pin 25 poles IP-65 90° series H cable of 3 m
G4X1-H-5 = Multipole Pin 25 poles IP-65 90° series H cable of 5 m
G9X1-H-3 = Multipole Pin 37 poles IP-65 90° series H cable of 3 m
G9X1-H-5 = Multipole Pin 37 poles IP-65 90° series H cable of 5 m
|
